• Country
• Germany

• Manufacturer / Brand
• Körting-Radio; Leipzig, später Grassau

• Year
• 1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 161665

• • alternative name: Dietz & Ritter GmbH, Dr.

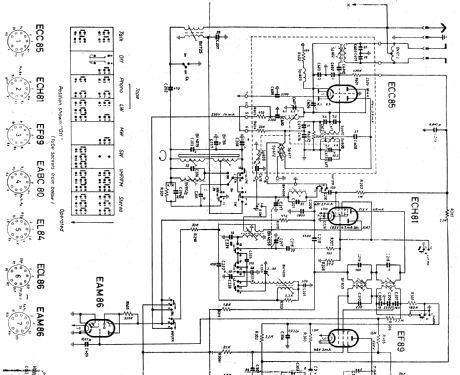

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EAM86 EL84 ECL86

• Number of Transistors

• Semiconductors
• B250C75

• Main principle
• Superheterodyne (common); ZF/IF 472/10700 kHz; Export model

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 18 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo-Chassis 22516 - Körting-Radio; Leipzig, später

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 540 x 170 x 200 mm / 21.3 x 6.7 x 7.9 inch

• Notes

• UKW-Bereich 88 - 108 MHz. Multiplexadapter 22914 (2 Transistoren) optional.

  Siehe auch Stereo-Chassis 22514 (mit deutscher Beschriftung).

  ---

  Export model. No station names. FM range 88 - 108 MHz. Multiplexadapter 22914  optional.

  See also Stereo-Chassis 22514.

  Alternative tube complement: 6AQ8 6AJ8 6DA6 6AK8 6HQ5 6GW8 6GX8.

• Net weight (2.2 lb = 1 kg)
• 7.2 kg / 15 lb 13.7 oz (15.859 lb)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
