Delmonico Excello Stereo 935FX 23662 Ch= 23612
Körting-Radio; Leipzig, später Grassau
- Country
- Germany
- Manufacturer / Brand
- Körting-Radio; Leipzig, später Grassau
- Year
- 1961 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 309259
-
- alternative name: Dietz & Ritter GmbH, Dr.

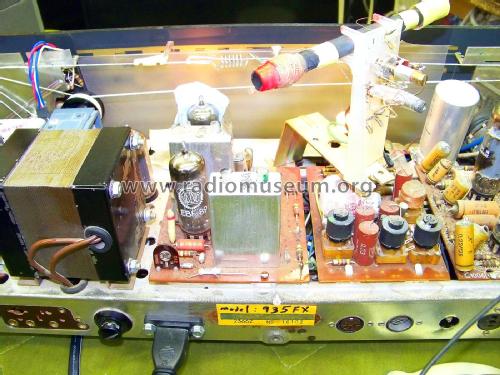

935FX radio
Netztrafo möglicherweise nicht original
Page 1 of owner manual
Owner manual 2
Owner manual 3
- Number of Tubes
- 7
- Number of Transistors
- 2
- Main principle
- Superheterodyne (common); Export model
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 60Hz, 110 - 120 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Delmonico Excello Stereo 935FX 23662 Ch= 23612 - Körting-Radio; Leipzig, später
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 25 x 13 x 17 inch / 635 x 330 x 432 mm
- Notes
-
Delmonico International, a division of Thompson-Starrett Co., Inc., in 120-20 Roosevelt Avenue, Corona 66, New York imported at least chassis, perhaps the full radio from different companies. One was Körting-Radio in Germany.
The model 23612 uses the tubes linked above. The FM multiplex adapter uses two 2SB54 transistors and two RL232 diodes. There is a ferrite antenna, short wave bandspread tuning, compensated volume control, separate bass and treble controls etc.
- Author
- Model page created by Jack Lockard. See "Data change" for further contributors.
