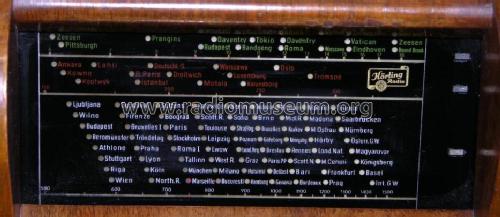

Etos S4230GW
Körting-Radio; Leipzig, später Grassau
- Country
- Germany
- Manufacturer / Brand
- Körting-Radio; Leipzig, später Grassau
- Year
- 1936/1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 2429
-
- alternative name: Dietz & Ritter GmbH, Dr.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Other, details in remarks or not known. / 110; 125; 150; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Etos S4230GW - Körting-Radio; Leipzig, später
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 425 x 370 x 255 mm / 16.7 x 14.6 x 10 inch
- Notes
- Variable Bandbreite
Autotrafo, keine Netztrennung !!!
- Net weight (2.2 lb = 1 kg)
- 13.6 kg / 29 lb 15.3 oz (29.956 lb)
- Price in first year of sale
- 284.00 RM
- Source of data
- HandB.d.d.Rundfunk-Handels 1936/37 / Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Lange+Schenk+FS-Röhrenbestückung
