- Country
- Germany
- Manufacturer / Brand
- Körting-Radio; Leipzig, später Grassau
- Year
- 1938–1940
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 2484
-
- alternative name: Dietz & Ritter GmbH, Dr.
- Number of Tubes
- 6
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110-220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 75 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org

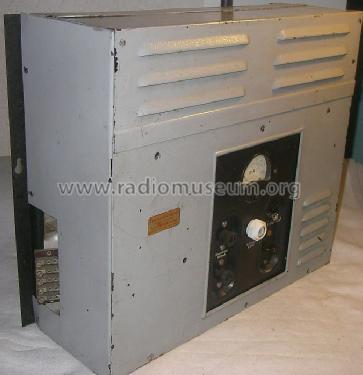

- Model: HEBW75 - Körting-Radio; Leipzig, später
- Dimensions (WHD)
- 470 x 403 x 178 mm / 18.5 x 15.9 x 7 inch
- Notes
- Net weight (2.2 lb = 1 kg)
- 26 kg / 57 lb 4.3 oz (57.269 lb)
- Price in first year of sale
- 791.00 RM
- Source of data
- Handbuch WDRG 1938 / Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Röhren in FS-Bestückungstabellen
