Madrid 24571 Art. Nr. 828/45
Körting-Radio; Leipzig, später Grassau
- Country
- Germany
- Manufacturer / Brand
- Körting-Radio; Leipzig, später Grassau
- Year
- 1964
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 87292
-
- alternative name: Dietz & Ritter GmbH, Dr.
2003 von R.Zetterberg erhalten u. bearb.

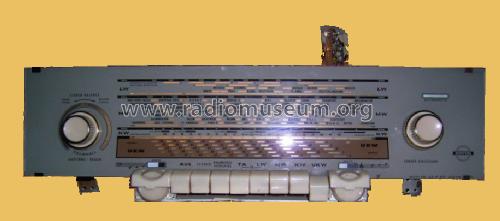

Vorderansicht
Unterseite
NF-Platine 2*ECL86
Ansicht von hinten oben
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110, 127, 220, 240 Volt
- Loudspeaker
- 4 Loudspeakers
- Power out
- 2.5 W (unknown quality)
- from Radiomuseum.org
- Model: Madrid 24571 Art. Nr. 828/45 - Körting-Radio; Leipzig, später
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 530 x 210 x 250 mm / 20.9 x 8.3 x 9.8 inch
- Notes
- Kurzwellenlupe mit Variometer, Ratiodetektor mit 2× OA172, Einbau von Stereodekoder und Raumklang vorbereitet, NF-Teil Stereo, je Kanal ein dynamischer Ovallautsprecher und ein elektrostatischer Hochtöner.
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Arthur Rudolph. See "Data change" for further contributors.
