• Country
• Germany

• Manufacturer / Brand
• Körting-Radio; Leipzig, später Grassau

• Year
• 1960 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 328881

• • alternative name: Dietz & Ritter GmbH, Dr.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECC85 EL95 EL95 EAM86 EL95

• Number of Transistors
• 2

• Semiconductors
• OC44 OC44 B250C75 E25C5 E25C5

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 50Hz, 110; 130; 150; 220; 230; 250 Volt

• Power out
• 2 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: MT157 - Körting-Radio; Leipzig, später

• Shape
• Tablemodel, with any shape - general.

• Notes

• Stereo Magnettongerät MT157 mit Vielfach-Überspieltechnik.

  Siehe auch Körting MT158 für 60Hz und 117 V Netzspannung

• Literature/Schematics (1)

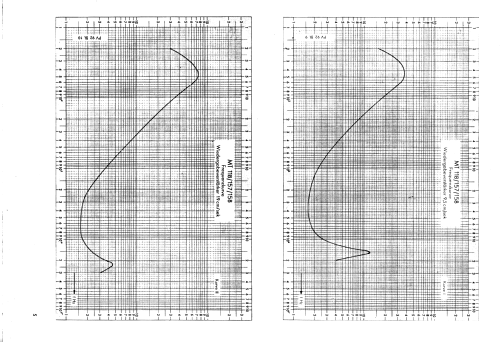

• -- Original-techn. papers.

• Author
• Model page created by Bernhard Nagel. See "Data change" for further contributors.
