• Country
• Germany

• Manufacturer / Brand
• Körting-Radio; Leipzig, später Grassau

• Year
• 1959/1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 124257

• • alternative name: Dietz & Ritter GmbH, Dr.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM84 EL84 EZ80

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

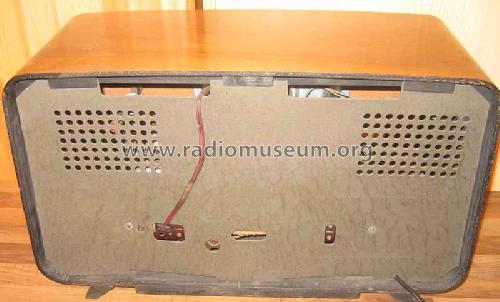

• Model: Novum 21331 Art. Nr. 821/11 - Körting-Radio; Leipzig, später

• Literature/Schematics (1)
• -- Original-techn. papers.
