• Country
• Germany

• Manufacturer / Brand
• Körting-Radio; Leipzig, später Grassau

• Year
• 1958 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 141696

• • alternative name: Dietz & Ritter GmbH, Dr.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM84 EL84 EZ80

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 155; 220; 240 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

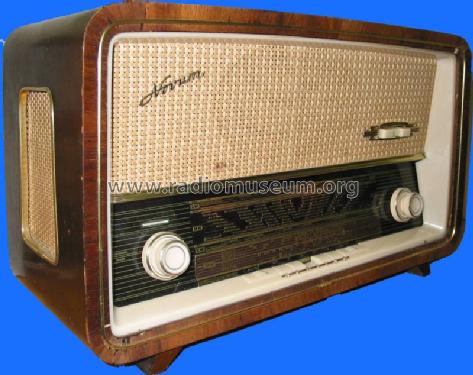

• Model: Novum 21420 - Körting-Radio; Leipzig, später

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 550 x 330 x 220 mm / 21.7 x 13 x 8.7 inch

• Notes
• 3 Tasten für Klangregelung, Bass- und Höhenregler; elektrostatische Lautsprecher seitlich. 2 Skalenlampen.

• Source of data
• - - Data from my own collection

• Author
• Model page created by Maurice Hamm. See "Data change" for further contributors.
