- Country
- Germany
- Manufacturer / Brand
- Körting-Radio; Leipzig, später Grassau
- Year
- 1933/1934
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 2364
-
- alternative name: Dietz & Ritter GmbH, Dr.
Radio-Schnorr 1934
Radio-Schnorr 1934
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- TRF with regeneration; 1 Special; 1 AF stage(s)
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Direct Current supply (DC) / 110-240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org

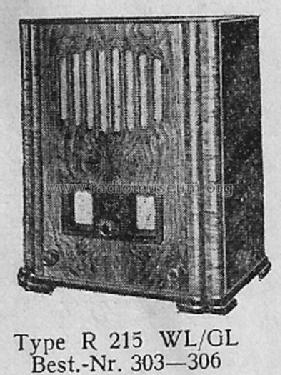

- Model: R215GL - Körting-Radio; Leipzig, später
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 440 x 490 x 250 mm / 17.3 x 19.3 x 9.8 inch
- Notes
-
Chassis entsprechend R220GL.
Alternativer Röhrensatz: H2518D, H2518D, L2318D.
- Price in first year of sale
- 245.00 RM !
- Source of data
- Radio-Zentrale Prohaska 1933/34 / Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Lange+Schenk+FS-Röhrenbestückung
- Mentioned in
- Katalog Radio-Schnorr 1934
