Saxonia RB3300GW

• Country
• Germany

• Manufacturer / Brand
• Körting-Radio; Leipzig, später Grassau

• Year
• 1935/1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 2403

• • alternative name: Dietz & Ritter GmbH, Dr.

• Picture

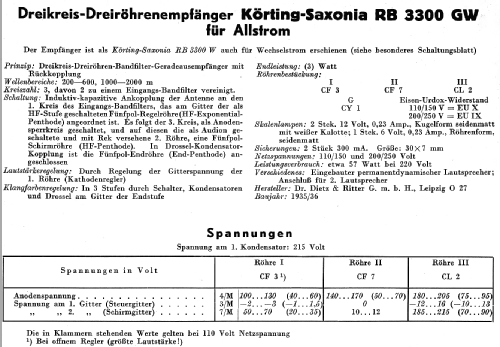

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• CF3 CF7 CL2 optional CY1 EUIX or EUX

• Main principle
• TRF with regeneration; 1 Special; 1 AF stage(s)

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• AC/DC-set / 110/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Saxonia RB3300GW - Körting-Radio; Leipzig, später

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 405 x 480 x 275 mm / 15.9 x 18.9 x 10.8 inch

• Notes
• Bandfilter im Eingangsteil.

• Net weight (2.2 lb = 1 kg)
• 15 kg / 33 lb 0.6 oz (33.04 lb)

• Price in first year of sale
• 286.00 RM

• Source of data
• Katalog Radio-Zentrale Alex v. Prohaska 1935/1936 / Radiokatalog Band 1, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
