Syntektor 728W
Körting-Radio; Leipzig, später Grassau
- Country
- Germany
- Manufacturer / Brand
- Körting-Radio; Leipzig, später Grassau
- Year
- 1957 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 214664
-
- alternative name: Dietz & Ritter GmbH, Dr.

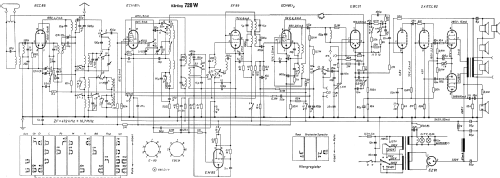

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superheterodyne (common); ZF/IF 472/10700 kHz
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 240 Volt
- Loudspeaker
- 5 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Syntektor 728W - Körting-Radio; Leipzig, später
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 590 x 210 x 240 mm / 23.2 x 8.3 x 9.4 inch
- Notes
- Körting Radiochassis mit Syntektor-Decoder und NF-Gegentaktendstufe.
- Net weight (2.2 lb = 1 kg)
- 8 kg / 17 lb 9.9 oz (17.621 lb)
- Mentioned in
- Lange, Schaltungen der Funkindustrie (Band 6, Seite 134 + 135)
- Author
- Model page created by Andreas Ruskowski. See "Data change" for further contributors.
