Excello 1020
Körting-Radio; Leipzig, später Grassau
- Country
- Germany
- Manufacturer / Brand
- Körting-Radio; Leipzig, später Grassau
- Year
- 1960 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 85964
-
- alternative name: Dietz & Ritter GmbH, Dr.
ebay.com, pzdesign, item_223565620654
ebay.com, pzdesign, item_223565620654
ebay.com, pzdesign, item_223565620654

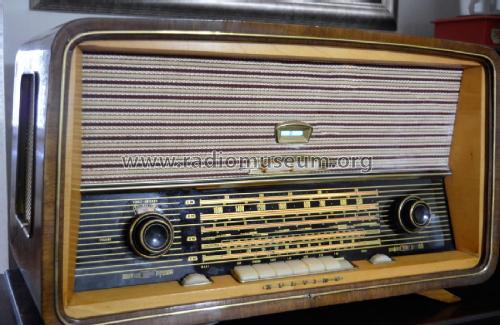

Devant de l'appareil, état d'origine
Unité vue de face.
Intérieur état original
- Number of Tubes
- 8
- Main principle
- Superheterodyne (common); ZF/IF 472/10700 kHz; Export model
- Tuned circuits
- 9 AM circuit(s) 12 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- 4 Loudspeakers
- Power out
- 4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Excello 1020 - Körting-Radio; Leipzig, später
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 590 x 343 x 269 mm / 23.2 x 13.5 x 10.6 inch
- Notes
-
Appears to be North American version of the Körting Excello 820W.
- Author
- Model page created by Philip O'Shields. See "Data change" for further contributors.
- Other Models
-
Here you find 815 models, 667 with images and 471 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Körting-Radio; Leipzig, später Grassau
Collections
The model Excello is part of the collections of the following members.
Forum contributions about this model: Körting-Radio;: Excello 1020
Threads: 1 | Posts: 4
Can anyone help me find a schematic for the export model Korting Excello 1020.
Stuart Schankman, 21.Sep.19
