• Country
• Germany

• Manufacturer / Brand
• Körting-Radio; Leipzig, später Grassau

• Year
• 1980

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 198452

• • alternative name: Dietz & Ritter GmbH, Dr.

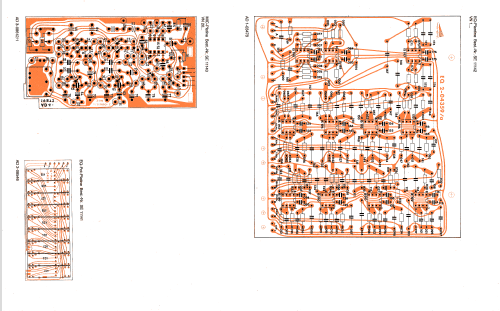

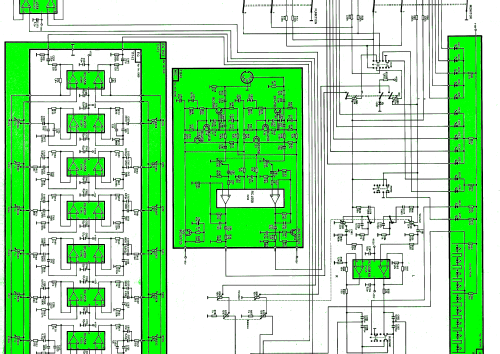

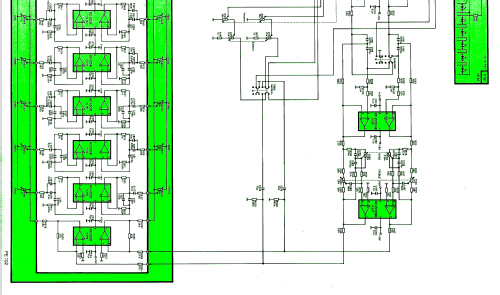

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Vorverstärker-Equalizer PE-102 - Körting-Radio; Leipzig, später

• Shape
• Book-shelf unit.

• Notes
• Equalizer mit Vorverstärker in Slim Line Gehäuse.

• Source of data
• -- Original-techn. papers.

• Mentioned in
• Funkschau (22/1980, S. 55 / HiFi 80 in Düsseldorf)

• Author
• Model page created by Holger Ortmann. See "Data change" for further contributors.
