K Line 15 Transistor with A.F.C. (Japan 718)
Korvette's (E. J. Korvette); New York, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- Korvette's (E. J. Korvette); New York, NY
- Year
- 1965 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 340992
- Number of Transistors
- 15
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Batteries / addl. power jack / AA: 4 x 1.5 V or External 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: K Line 15 Transistor with A.F.C. - Korvette's E. J. Korvette; New
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Notes
-

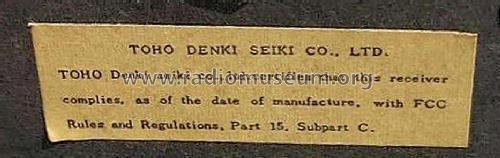

The K Line 15 Transistor with A.F.C. (Japan 718) was manufactured by Toho Denki Seiki Co., Ltd. and imported and sold in the USA by Korvettes (E.J. Korvette).
It has the following features:
- Separate AM & FM scale.
- Built-in AM ferrite rod antenna; built-in FM telescopic antenna
- Ear jack.
- External power jack (6VDC).
- Leather sides and back over plastic case with leather carry handle.
- Face is plastic with metal speaker grill. K Line badge is attached to the grill.
Similar to the models reported under Valiant.
Made in Japan 718
- Author
- Model page created by Jerry Elarton. See "Data change" for further contributors.
