• Country
• Germany

• Manufacturer / Brand
• Kosmos, Franckh´sche Verlagshandlung

• Year
• 1951

• Category
• Kit (Parts plus instruction) or building instructions only

• Radiomuseum.org ID
• 83863

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• DM300_new

• Main principle
• TRF with regeneration

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case, TUBES VISIBLE.

• from Radiomuseum.org

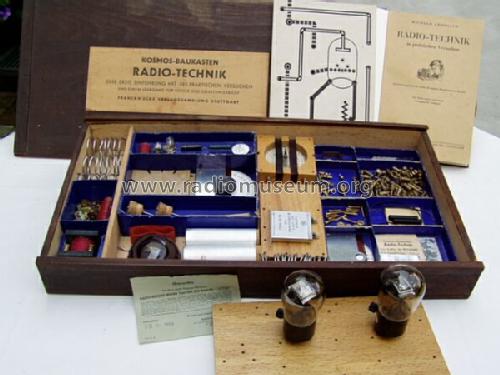

• Model: Baukasten Radio-Technik 5. Auflage - Kosmos, Franckh´sche

• Dimensions (WHD)
• 500 x 60 x 270 mm / 19.7 x 2.4 x 10.6 inch

• Notes
• Wichtige Texte hier.

• Price in first year of sale
• 88.00 DM

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Wolfgang Holtmann. See "Data change" for further contributors.
