- Country
- Poland
- Manufacturer / Brand
- Kosmos Radio SA; Warszawa
- Year
- 1938/1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 104947
- Number of Tubes
- 3
- Main principle
- TRF with regeneration
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: K98A - Kosmos Radio SA; Warszawa
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 515 x 310 x 190 mm / 20.3 x 12.2 x 7.5 inch
- Notes
-
Dreifachsperrkreis.

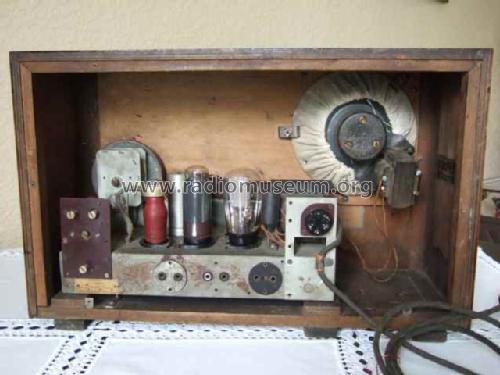

Same chassis as in Philips 102A, 109A, Kosmos K86A, K92A. Differences are 6.3V tubes (red E series) instead of 4V tubes (A series).
- Net weight (2.2 lb = 1 kg)
- 8.9 kg / 19 lb 9.7 oz (19.604 lb)
- Source of data
- - - Data from my own collection
- Mentioned in
- Zlote Lata Radia, Polen
