Stereo Headphones ESP-6
Koss Corporation; Milwaukee, WI
- Country
- United States of America (USA)
- Manufacturer / Brand
- Koss Corporation; Milwaukee, WI
- Year
- 1968–1973
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 157392
Response curve trace supplied with each set.
1977 warranty card serial 034.
Click on the schematic thumbnail to request the schematic as a free document.
- Wave bands
- - without
- Loudspeaker
- - Is a Headphone or Earphone
- from Radiomuseum.org
- Model: Stereo Headphones ESP-6 - Koss Corporation; Milwaukee,
- Notes

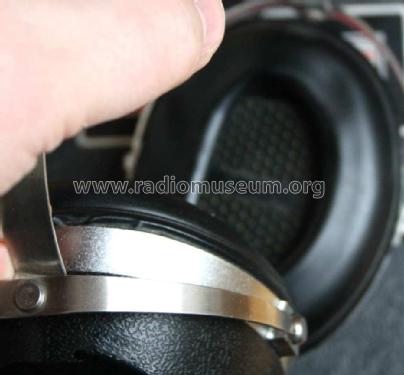

- Electrostatic stereo headphones; 30 to 19000Hz, 80dB SPL, 4 to 16 ohms. Fluid filled earcups.
This model generates the high voltage bias from the audio signal driving the left channel. Not suitable for classic music, when bias voltage may drop due to prolonged silences.
- Price in first year of sale
- 95.00 $
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Emilio Ciardiello. See "Data change" for further contributors.
