Pascha 54 83.86.8601

• Country
• Germany

• Manufacturer / Brand
• Krefft AG, W.; Gevelsberg (Westfalen): Weltfunk

• Year
• 1954/1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 15590

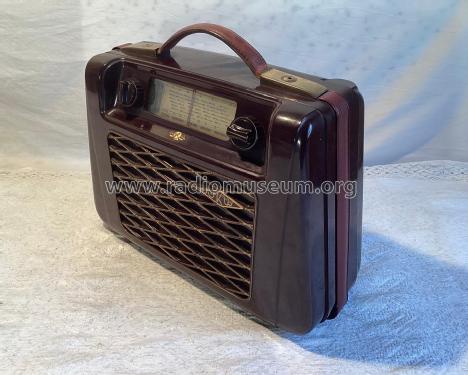

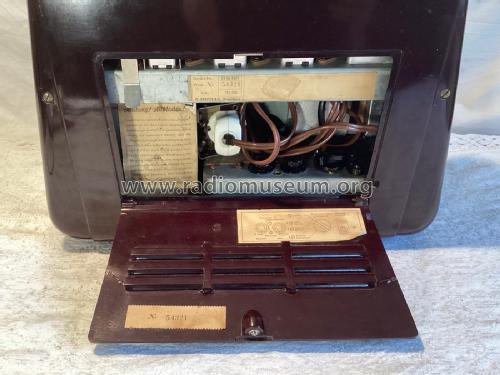

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• EC92 DK92 DF91 DF91 DAF91 DL94

• Main principle
• Superheterodyne (common); ZF/IF 452/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 110/220 / 4,8 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch

• Power out
• 0.6 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Pascha 54 83.86.8601 - Krefft AG, W.; Gevelsberg

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 350 x 285 x 150 mm / 13.8 x 11.2 x 5.9 inch

• Notes
• Akku+Zerhacker; Kat. 482 von 1954 gibt als Mass: 242 x 168 x 81.

• Net weight (2.2 lb = 1 kg)
• 7.5 kg / 16 lb 8.3 oz (16.52 lb)

• Price in first year of sale
• 369.00 DM

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Rundfunk- und Fernseh-Katalog 1954/55 / Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Historische Radios Band III (140)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
