Weltfunk W519 Phono
Krefft AG, W.; Gevelsberg (Westfalen): Weltfunk
- Country
- Germany
- Manufacturer / Brand
- Krefft AG, W.; Gevelsberg (Westfalen): Weltfunk
- Year
- 1951/1952
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 15571

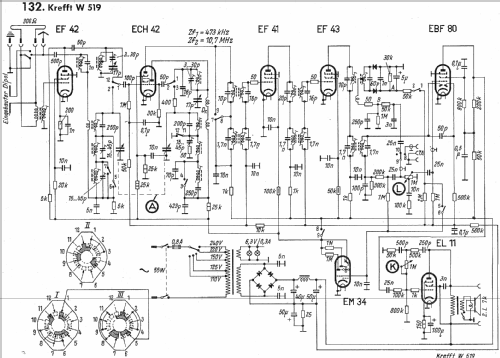

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Number of Transistors
- Semiconductors
- Tr.Gl.=Metal-rectif.
- Main principle
- Superheterodyne (common); ZF/IF 473/10700 kHz
- Tuned circuits
- 8 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 25 cm = 9.8 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Weltfunk W519 [Phono] - Krefft AG, W.; Gevelsberg
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Kat.d.Rundf.GrossH.1951/52 / Radiokatalog Band 2, Ernst Erb
- Mentioned in
- Funkschau (5113)
