UKW-Einbaugerät W50 (50W) 81-21-0400
Krefft AG, W.; Gevelsberg (Westfalen): Weltfunk
- Country
- Germany
- Manufacturer / Brand
- Krefft AG, W.; Gevelsberg (Westfalen): Weltfunk
- Year
- 1950/1951
- Category
- Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter
- Radiomuseum.org ID
- 15560
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- ECF12
- Main principle
- RF Converter/Adapter (not voltage converter)
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- Powered by external power supply or a main unit.
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: UKW-Einbaugerät W50 81-21-0400 - Krefft AG, W.; Gevelsberg
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 77 x 75 x 58 mm / 3 x 3 x 2.3 inch
- Notes
- Pendler mit Vorstufe.
- Net weight (2.2 lb = 1 kg)
- 0.5 kg / 1 lb 1.6 oz (1.101 lb)
- Price in first year of sale
- 35.00 DM
- External source of data
- E. Erb 3-907007-36-0
- Source of data

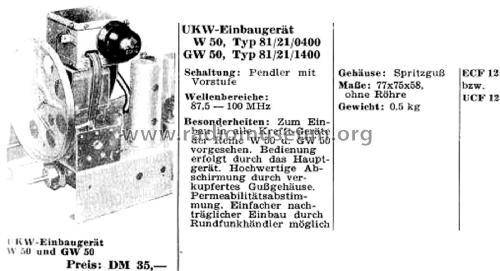

- Kat.d. Rundf.Gr.Handel 1950/51 / Radiokatalog Band 2, Ernst Erb
- Mentioned in
- Funk-Technik (FT) (5015)
