• Country
• Australia

• Manufacturer / Brand
• Kriesler Radio Company; Newtown (Sydney)

• Year
• 1948–1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 163034

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH35 6G8G 6V6GT 6X5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s); Reflex

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Bakelite case

• from Radiomuseum.org

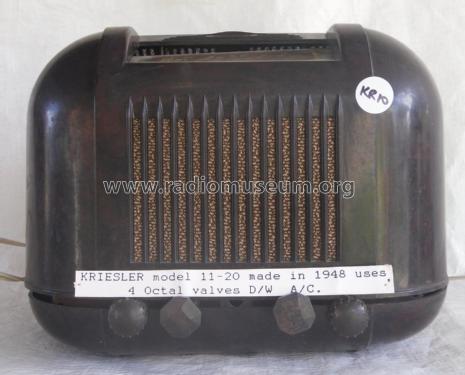

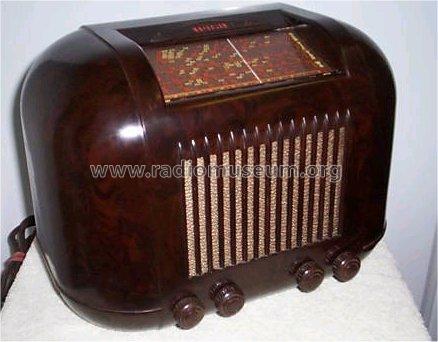

• Model: 11-20A - Kriesler Radio Company;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 308 x 225 x 222 mm / 12.1 x 8.9 x 8.7 inch

• Notes

• The 11-20 series had 27 variants, differing in valve line up, speaker type, circuit variations etc.



• Price in first year of sale
• 18.90 AUS £

• Circuit diagram reference
• Australian Official Radio Service Manual Vol. VII

• Literature/Schematics (1)
• - - Manufacturers Literature (Kriesler Technical Service Instructions.)

• Literature/Schematics (2)
• Australian Official Radio Service Manual AORSM (Volume 7, 1949, Page 228.)

• Author
• Model page created by Peter Hughes. See "Data change" for further contributors.
