11-22F (Issue 2)
Kriesler Radio Company; Newtown (Sydney)
- Country
- Australia
- Manufacturer / Brand
- Kriesler Radio Company; Newtown (Sydney)
- Year
- 1948
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 297655
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast and Short Wave (SW).
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 220-240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 11-22F - Kriesler Radio Company;
- Shape
- Console with any shape - in general
- Notes
-
This version has a Garrard Type "E" Record Player Unit fitted with Garrard A.C. 7C Motor and Standard "Black Band" Pick-up.
- Literature/Schematics (1)

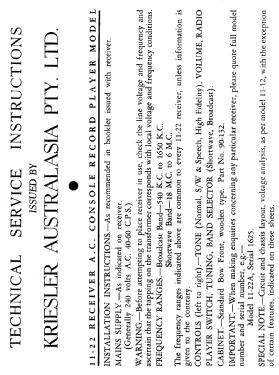

- - - Manufacturers Literature (Kriesler Technical Service Instructions)
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
