• Country
• Australia

• Manufacturer / Brand
• Kriesler Radio Company; Newtown (Sydney)

• Year
• 1953/1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 193678

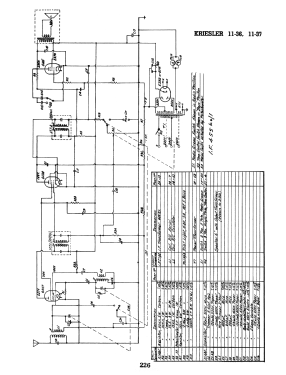

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 6AN7 6AD8 6M5 EZ82 or 6V4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s); Reflex

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 220; 240; 260 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org
• Model: 11-37 - Kriesler Radio Company;

• Shape
• Tablemodel, with any shape - general.

• Notes

• Tablegram with 3-speed record player.

  See also single speed version model 11-36.

• Price in first year of sale
• 50.40 AUS £

• Circuit diagram reference
• Australian Official Radio Service Manual Vol. XII

• Mentioned in
• Mingay's Price Service (May 1953 to Nov 1954.)

• Literature/Schematics (1)
• -- Original-techn. papers. (Kriesler Technical Service Instructions.)

• Literature/Schematics (2)
• Australian Official Radio Service Manual AORSM (Volume 12, 1954, Page 226.)

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
