Kriesler Radio Company; Newtown (Sydney)

Data
Forum
Pictures
Collections

  • Year
  • 1946/1947
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 179816

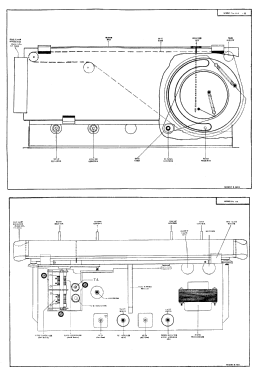

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC) / 220; 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 11-6 - Kriesler Radio Company;
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes

  • Kriesler advertised this set & other post-war models as a "Sealed Radio". Solder joints were marked to prevent unauthorised servicing & tampering.

    • CIRCUIT: As on 11-6 circuit.
    • COIL KIT: Part No. 15-3 (AWA Tuning Condenser).
    • DIAL GLASSES: Part No. 50-19 (Front glass), Part No. 50-21 (Rear glass).
    • SPEAKER: Part No. 70-12 (12" Permanent magnet type).
    • OUTPUT TRANSFORMER: Part No. 18-31.
    • POWER TRANSFORMER: Part No. 18-30 (H.T.: 285v. each side of centre tap).
  • Price in first year of sale
  • 49.35 AUS £
  • Circuit diagram reference
  • Australian Official Radio Service Manual Vol. V
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Kriesler Technical Service Instructions.)
  • Author
  • Model page created by Stuart Irwin. See "Data change" for further contributors.
