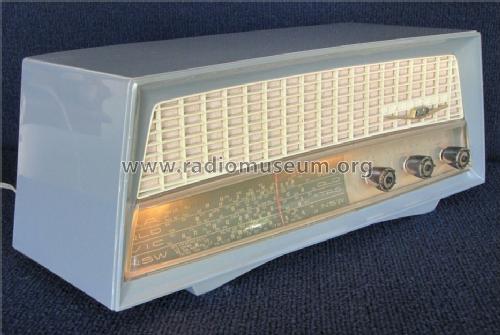

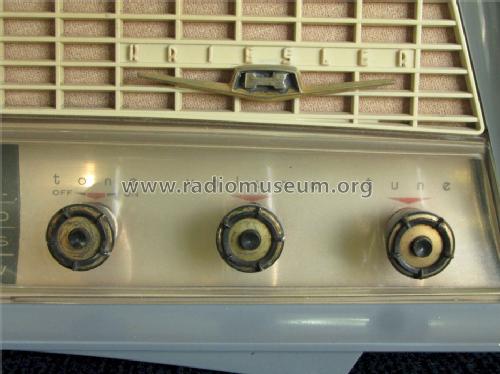

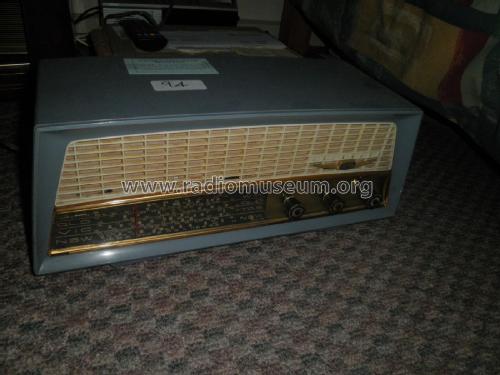

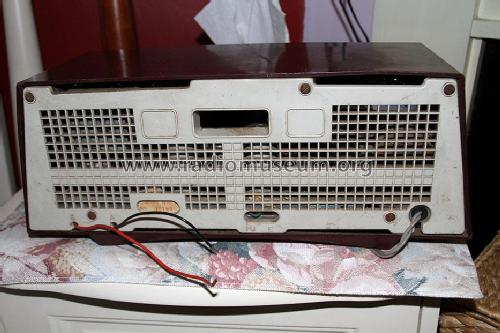

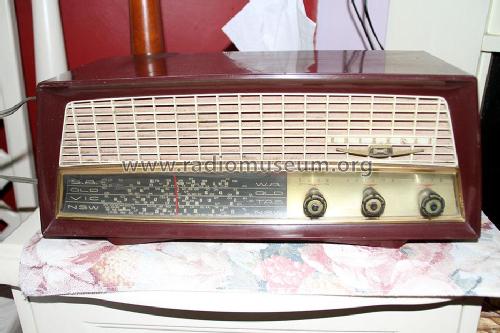

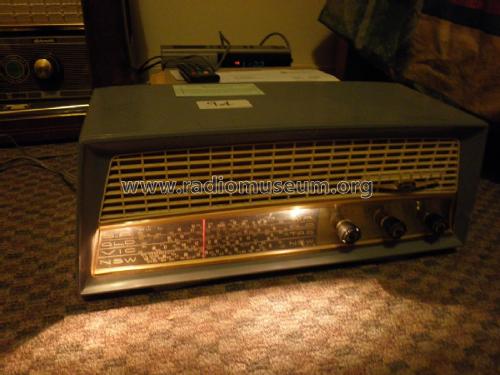

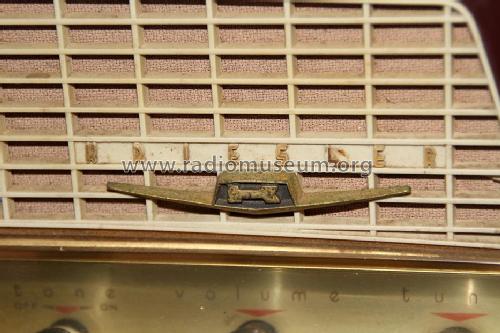

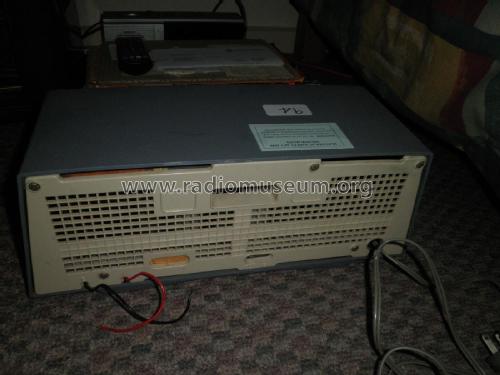

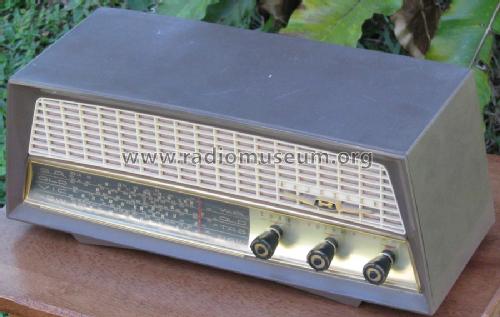

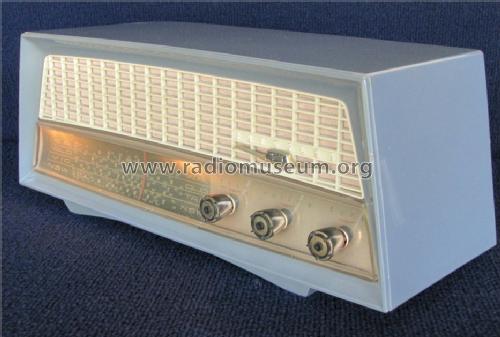

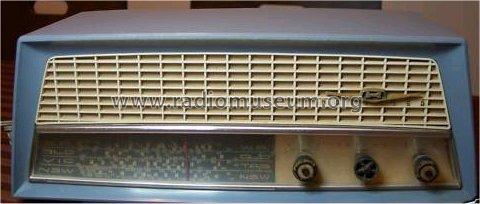

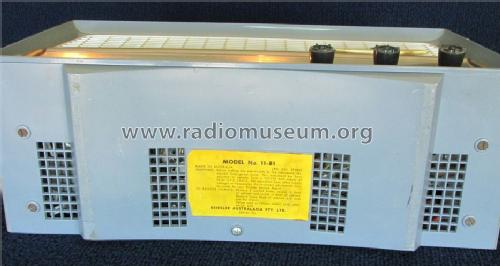

Panoramic 11-81

• Country
• Australia

• Manufacturer / Brand
• Kriesler Radio Company; Newtown (Sydney)

• Year
• 1959–1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 138926

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

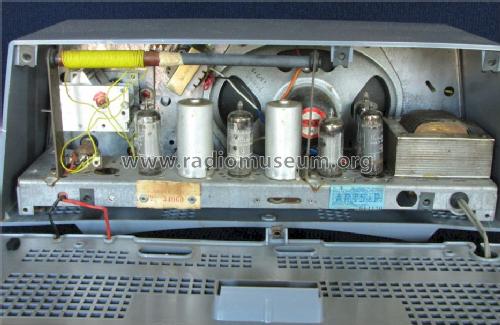

• Number of Tubes
• 5

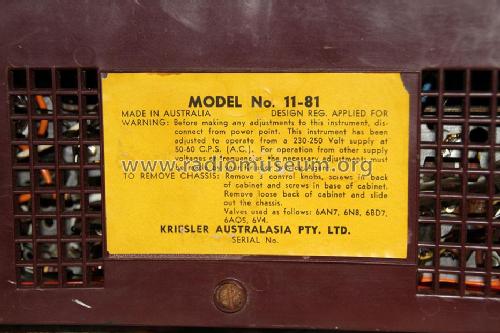

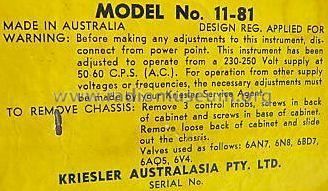

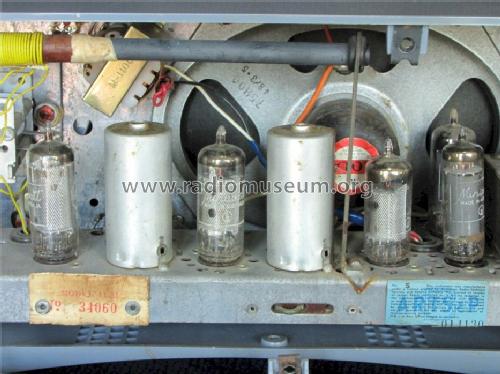

• Valves / Tubes
• 6AN7 6N8 6BD7 6AQ5 6V4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

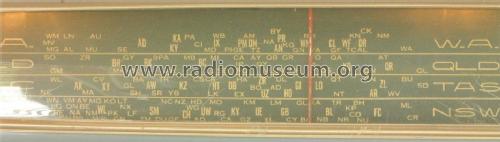

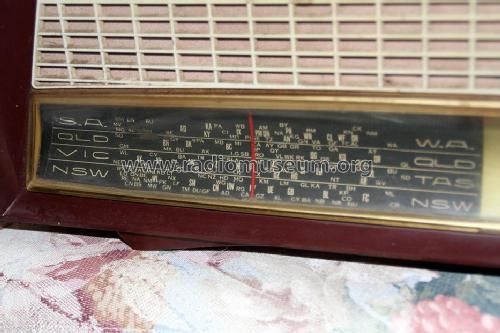

• Wave bands
• Broadcast only (MW).

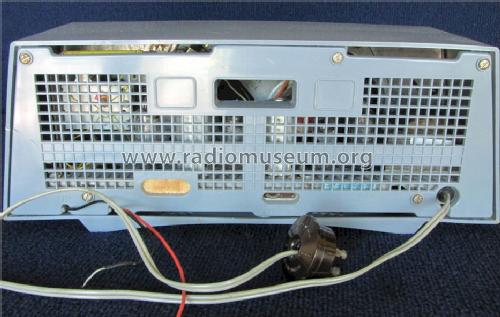

• Power type and voltage
• Alternating Current supply (AC) / 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Panoramic 11-81 - Kriesler Radio Company;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 16.5 x 6.25 x 6 inch / 419 x 159 x 152 mm

• Notes

• Colours available in Chameleon Ivory, Charcoal/Pink, Mocha/Ivory & Burgundy/Ivory.

• Net weight (2.2 lb = 1 kg)
• 7 kg / 15 lb 6.7 oz (15.419 lb)

• Price in first year of sale
• 27.30 AUS £

• Literature/Schematics (1)

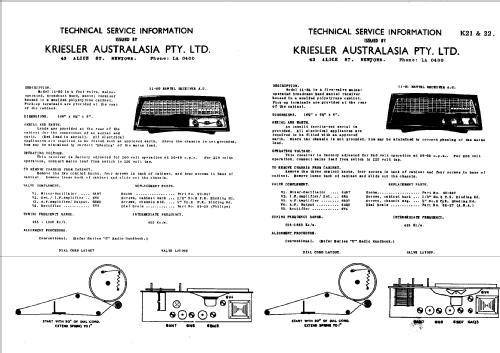

• - - Manufacturers Literature (Kriesler Technical Information, schematic drawn 12/5/1959.)

• Literature/Schematics (2)
• J.R. Publications Radio Service Handbook (R.V. Series Vol. 1, 1963, Page K22.)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
