- Country
- Australia
- Manufacturer / Brand
- Kriesler Radio Company; Newtown (Sydney)
- Year
- 1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 183247
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 or 458 kHz; 1 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org

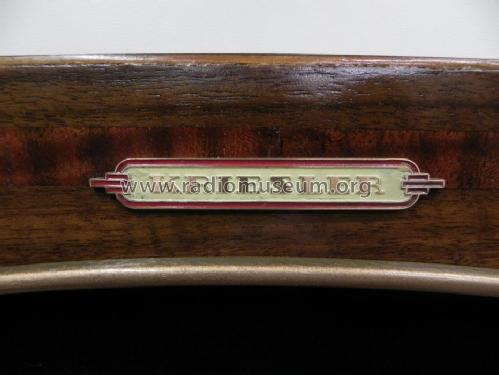

- Model: 3K01 - Kriesler Radio Company;
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 450 x 309 x 235 mm / 17.7 x 12.2 x 9.3 inch
- Circuit diagram reference
- Australian Official Radio Service Manual Vol. IV
- Literature/Schematics (1)
- Mingay's Radio Diagram & I.F. Index
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
