• Country
• Australia

• Manufacturer / Brand
• Kriesler Radio Company; Newtown (Sydney)

• Year
• 1968

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 276284

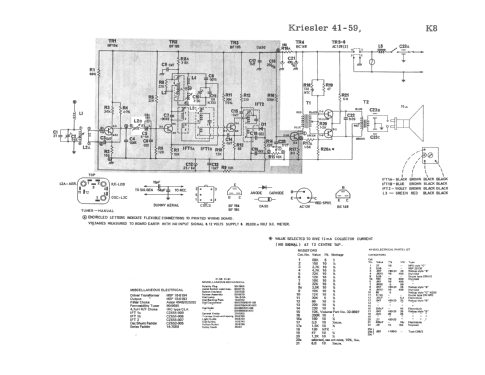

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• BF194 BF195 BF195 BC148 AC128 AC128 OA90

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 2 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Custom 80 Special 6 41-59 - Kriesler Radio Company;

• Shape
• Chassis only or for «building in»

• Notes

• Manual tuning.

  Custom kit $6 extra.

• Net weight (2.2 lb = 1 kg)
• 3.75 lb (3 lb 12 oz) / 1.703 kg

• Price in first year of sale
• 63.00 AUS $

• Literature/Schematics (1)
• J.R. Publications Car Radio Service Handbook (Group G6, September 1969, Page K8.)

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
