Craftsman Smart Set Q4 Series 11-166
Kriesler Radio Company; Newtown (Sydney)
- Country
- Australia
- Manufacturer / Brand
- Kriesler Radio Company; Newtown (Sydney)
- Year
- 1972 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 339507
- Number of Transistors
- 16
- Semiconductors
- BF194 BF195 BF195 BF194 BC149 BC148 BC147 OC955 or. OC9524 AD161 AD162 BC149 BC148 BC147 OC955 or. OC9524 AD161 AD162 BY126 BY126 OA90 OA90
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 225-265 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Craftsman Smart Set Q4 Series 11-166 - Kriesler Radio Company;
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 25.25 x 25.75 x 14.75 inch / 641 x 654 x 375 mm
- Notes
-

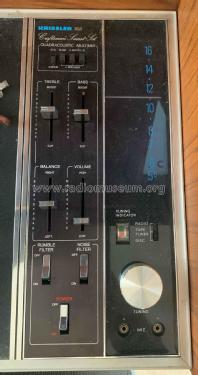

Stereo radiogram with quadraphonic option.
- AM radio
- Automatic turntable with 33/45/78 rpm
- Bass, treble and balance controls.
- Rumble & noise filters
- Sold with two speakers.
- Extra two speakers for quadraphonic, optional.
Dimensions;
- Stereo cabinet; 645mm wide x 380mm deep x 660mm high (lid open; 825mm high).
- Internal cabinet; 350mm deep, 315mm high, 590mm wide.
- Speakers; 460mm wide, 380mm deep x 660mm high.
- Mentioned in
- -- Collector info (Sammler)
- Literature/Schematics (1)
- -- Original-techn. papers. (Kriesler Technical Advisory Service Sheet No. 144.)
- Author
- Model page created by Keith Ellison. See "Data change" for further contributors.
