Custom 15 Deluxe Hi-Fi Multisonic 11-118
Kriesler Radio Company; Newtown (Sydney)
- Country
- Australia
- Manufacturer / Brand
- Kriesler Radio Company; Newtown (Sydney)
- Year
- 1968–1970
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 294523
Service manual cover.

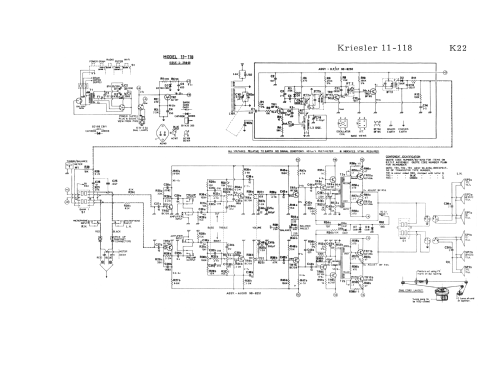

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 18
- Semiconductors
- BF184 BF184 BF195 BC109 BC108 BC108 BC108 AC187 AD149 AD149 BC109 BC108 BC108 BC108 AC187 AD149 AD149 AC187 OA91 OA90 OA91 OA91 OA91 OA91 BZY88
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 230-275 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: Custom 15 Deluxe Hi-Fi Multisonic 11-118 - Kriesler Radio Company;
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 19.5 x 29.625 x 18.75 inch / 495 x 752 x 476 mm
- Notes
-
"Custom 15" De-Luxe Hi-Fi Modular Multisonic Stereogram, transistorised, AC, B/C, ARG4, complete with dynamic microphone, Dual 1015F changer, magnetic cartridge, in oiled teak (Danish Walnut to order).
- Net weight (2.2 lb = 1 kg)
- 205 lb 0 oz (205 lb) / 93.070 kg
- Price in first year of sale
- 679.00 AUS $
- Mentioned in
- Mingay's Price Service (Feb 1969 to Aug 1970.)
- Literature/Schematics (1)
- -- Original-techn. papers. (Service Note No. 118)
- Literature/Schematics (2)

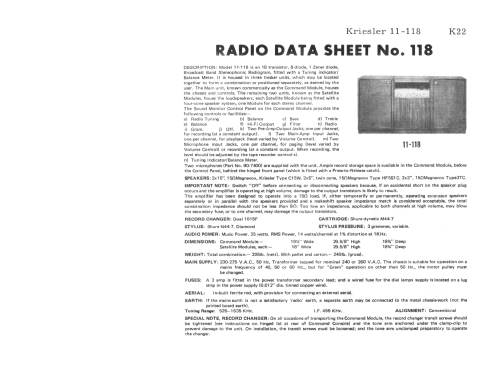

- J.R. Publications Transistor Radio Service Handbook (Group C6, 1969, Page K22)
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
