• Country
• Australia

• Manufacturer / Brand
• Kriesler Radio Company; Newtown (Sydney)

• Year
• 1960/1961

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 281444

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 15

• Valves / Tubes
• 6ES8 6BL8 6BY7 6EH7 6EJ7 6CK6 6CS6 6BL8 6BX6 6BM8 6BM8 6BL8 6CM5 6AL3 1S2 AW59-30 or AW59-90

• Number of Transistors

• Semiconductors
• OA210 or. 1N1763 OA210 or. 1N1763 OA79 OA79 OA80 OA81 OA81 OA81

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 200-265 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

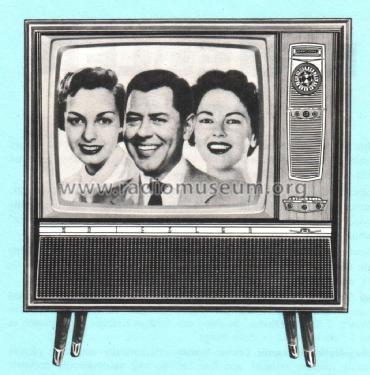

• Model: Magi-Matic Fine-Line Console 121-16A Ch= 79-3 - Kriesler Radio Company;

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 29.5 x 16 x 34 inch / 749 x 406 x 864 mm

• Notes

• "Magi-Matic" 23" Fine-Line console, in maple, walnut or  rose mahogany.

  See also earlier 21" version, Model 121-16.

• Net weight (2.2 lb = 1 kg)
• 130 lb 0 oz (130 lb) / 59.020 kg

• Price in first year of sale
• 198.45 AUS £

• Mentioned in
• Mingay's Price Service (Feb 1961.)

• Literature/Schematics (1)
• -- Original-techn. papers. (Kriesler Television Model Handbook Series A, 79-3 Chassis.)

• Literature/Schematics (2)
• -- Original-techn. papers. (Kriesler Television Service Handbook Series B, 79-3 Chassis.)

• Literature/Schematics (3)
• J.R. Publications Television Service Handbook (Television Service Manual 2nd edition 1961, L.J. Series 1962 & 1967, Page K8.)

• Author
• Model page created by Martin Kent. See "Data change" for further contributors.
