Powermatic Hi-Line Console Deluxe 121-28 Ch= 79-3
Kriesler Radio Company; Newtown (Sydney)
- Country
- Australia
- Manufacturer / Brand
- Kriesler Radio Company; Newtown (Sydney)
- Year
- 1960
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 292094

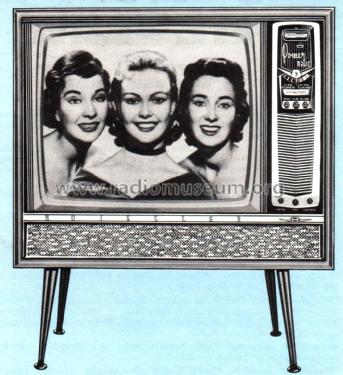

From brochure, courtesy of Andrew McCallum.
- Number of Tubes
- 17
- Valves / Tubes
- 6ES8 6BL8 6BY7 6EH7 6EJ7 6CK6 6CS6 6BL8 6BX6 6BM8 6BM8 6BL8 6BL8 6CM5 6AL3 1S2 AW59-30 or AW59-90
- Number of Transistors
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 210; 235; 255 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: Powermatic Hi-Line Console Deluxe 121-28 Ch= 79-3 - Kriesler Radio Company;
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 29.5 x 34 x 16 inch / 749 x 864 x 406 mm
- Notes
-
Height includes detachable screw-on legs at 10" length each.
Cabinet finishes available in Maple & Walnut.
- Price in first year of sale
- 208.95 AUS £
- Mentioned in
- Mingay's Price Service (Feb 1961.)
- Literature/Schematics (1)
- -- Original prospect or advert (Kriesler Television Service Handbook ,79-3 chassis.)
- Literature/Schematics (2)
- J.R. Publications Television Service Handbook (Television Service Manual 2nd edition 1961, L.J. Series 1962 & 1967, Page K8.)
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
