• Country
• Australia

• Manufacturer / Brand
• Kriesler Radio Company; Newtown (Sydney)

• Year
• 1956–1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 158621

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 6AN7 6AD8 6M5 6V4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s); Reflex

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 200-220; 220-240; 240-260 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Power out
• 3.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

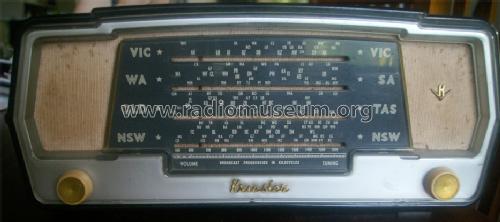

• Model: Panoramic 11-60 - Kriesler Radio Company;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 380 x 160 x 175 mm / 15 x 6.3 x 6.9 inch

• Notes

• Kriesler 11-60

  In appearance, performance and value, this model presents outstanding value. "Panoramic" low-wide cabinet styling is the latest American fashion trend. Big flood-lit wide dial give easy tuning. Glamorous gold trim. "Panoramic" sound system gives unequalled tone. (4-valve, B/C AC.) Colours: Burgundy, Ivory, Charcoal - with Grey or Pink. (FROM MINGAY'S PRICE SERVICE)

• Net weight (2.2 lb = 1 kg)
• 4.4 kg / 9 lb 11.1 oz (9.692 lb)

• Price in first year of sale
• 23.10 AUS £

• Mentioned in
• Mingay's Price Service (May 1956 to Aug 1959.)

• Literature/Schematics (1)

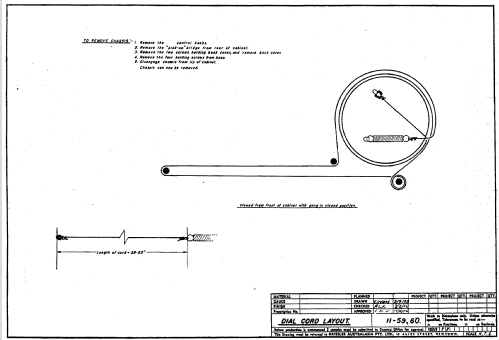

• -- Original-techn. papers. (Kriesler Technical Instructions)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
