Stereophonic 11-84

Kriesler Radio Company; Newtown (Sydney)

Data
Forum
Pictures
Collections

  • Year
  • 1960
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 136287

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 210-230; 230-250; Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: Stereophonic 11-84 - Kriesler Radio Company;
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 20.25 x 9.5 x 16.5 inch / 514 x 241 x 419 mm
  • Notes

  • Kriesler 11-84 (11/84) Stereophonic;

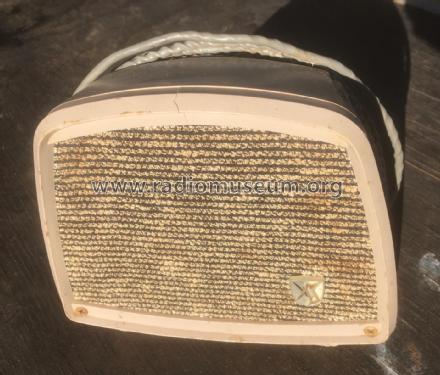

    Disc record changer, (BSR type UA8) stereo with a remote speaker for the right channel.

    This model has the same cabinet and chassis design as the model 11-83.

    Colour combinations available in Charcoal/Pink & Mocha/Ivory.



  • Net weight (2.2 lb = 1 kg)
  • 30 lb (30 lb 0 oz) / 13.620 kg
  • Price in first year of sale
  • 78.75 AUS £
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Kriesler Series "A" Radio Handbook.)
