• Country
• Australia

• Manufacturer / Brand
• Kriesler Radio Company; Newtown (Sydney)

• Year
• 1972–1975

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 294550

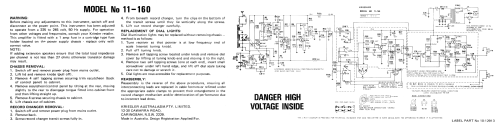

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 14

• Semiconductors
• BF194 BF195 BF195 BF194 BC149 BC149 OC9264 OC9464 OC9284 BC149 BC149 OC9264 OC9464 OC9284 OA90 BY126 BY126

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 245; 265 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Stereosonic 11-160 - Kriesler Radio Company;

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 40 x 24.75 x 18 inch / 1016 x 629 x 457 mm

• Notes

• One piece console stereo radiogram with 4-speed BSR C129-A-1 auto changer.

  Cabinet finishes available in Oiled Teak, Gloss Maple, Walnut & Rose Mahogany.

  Height includes 8" detachable legs.

• Price in first year of sale
• 195.00 AUS $

• Mentioned in
• Mingay's Price Service (Feb 1974 to Feb 1975.)

• Literature/Schematics (1)
• - - Manufacturers Literature (Kriesler Technical Advisory Service Sheet No. 142)

• Author
• Model page created by Martin Kent. See "Data change" for further contributors.
