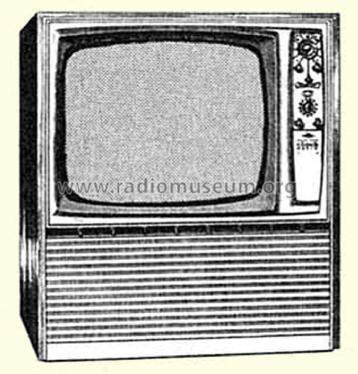

Super Fringe Clockmatic Console Grand 121-71 Ch= 79-10A
Kriesler Radio Company; Newtown (Sydney)
- Country
- Australia
- Manufacturer / Brand
- Kriesler Radio Company; Newtown (Sydney)
- Year
- 1963
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 297022
From service manual.
- Number of Tubes
- 18
- Valves / Tubes
- 6BL8 6BX6 6GW8 6HG8 6ES8 6EH7 6EJ7 6EJ7 6DX8 6BL8 6HS8 6AL5 6GV8 6BL8 6CM5 1S2 6AL3 AW59-90
- Number of Transistors
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 225-265 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Super Fringe Clockmatic Console Grand 121-71 Ch= 79-10A - Kriesler Radio Company;
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 28.75 x 31.5 x 15.75 inch / 730 x 800 x 400 mm
- Notes
-
Cabinet finishes available in Walnut, Maple & Rosewood.
- Price in first year of sale
- 229.95 AUS £
- Literature/Schematics (1)
- - - Manufacturers Literature (Kriesler Television Advisory Service For 79-10A Super Fringe Chassis.)
- Literature/Schematics (2)
- J.R. Publications Television Service Handbook (L.J. Seriers Vol. 1, 1967, Page K18.)
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
