Multi-Sonic TV Theatre Super Fringe A118 Ch= 79-17

Kriesler Radio Company; Newtown (Sydney)

Dati
Forum
Immagini
Collezioni

  • Anno
  • 1966–1968
  • Categoria
  • Ricevitore TV e radio (ev. con magnetofono, giradischi, registratore a cassette ecc.)
  • Radiomuseum.org ID
  • 297727

 Specifiche tecniche

  • Numero di tubi
  • 22
  • Numero di transistor
  • Principio generale
  • Supereterodina con stadio RF
  • Gamme d'onda
  • VHF/UHF (ved. i dettagli nelle note)
  • Particolarità
  • Cambiadischi
  • Tensioni di funzionamento
  • Alimentazione a corrente alternata (CA) / 245-265 Volt
  • Altoparlante
  • 4 altoparlanti
  • Materiali
  • Mobile in legno
  • Radiomuseum.org
  • Modello: Multi-Sonic TV Theatre Super Fringe A118 Ch= 79-17 - Kriesler Radio Company;
  • Forma
  • Console di qualsiasi tipo
  • Dimensioni (LxAxP)
  • 62.5 x 30.25 x 17.5 inch / 1588 x 768 x 445 mm
  • Annotazioni

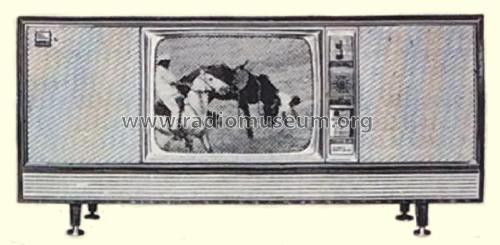

  • Kriesler Model A118 Fully Automatic 25" Multi-Sonic TV Theatre

    A complete home entertainment centre combining fully automatic TV and chairside remote control, with Kriesler Multi-Sonic stereogram. Provides four dimensions of entertainment in one cabinet. Craftsman built fine furniture cabinet finished in maple, walnut or rose mahogany. Teak toning to order - no extra cost.

    Features: Kriesler "Super Fringe" chassis 79-17. Fully automatic, it switches itself on any time up to 24 hours ahead. Inbuilt electric clock for accurate time and programming. Kriesler 25" "Cinescope" picture, bigger, clearer, wider picture in modern rectangular shape. Chairside remote control for the following television functions, changes channel, controls sound, adjusts picture brightness, switches off as well as providing choice of three sound sources. "Computer-Matic" circuit automatically maintains best possible picture and sound. Automatic preset fine tuning, continuously variable tone control.

    Fitted with MkIIA Garrard AT6 laboratory series changer, counter balance on tone arm, which embodies a bias compensator unit, rest clip clamp, "Cut-away" pick-up head, stylus pressure calibration scale. Tropic-proof Sonotone 9TA cartridge, dual-tipped diamond stylus 9TASD, plays all speeds, all sizes, automatically or manually.

    Six valve broadcast radio, "Multi-sound" sockets for microphone, tape recording and tape play-back through the unit's amplifier or speakers, for connecting extension speakers, amplifying musical instruments, etc. Supplied complete with Kriesler dynamic microphone.

    Speakers: 2 x 8" twin cone 15 ohms; 2 x 9" x 6" elliptical. (FROM MINGAY'S PRICE SERVICE)

  • Prezzo nel primo anno
  • 816.00 AUS $
  • Letteratura / Schemi (1)
  • -- Original-techn. papers. (Kriesler Technical Advisory Service Sheet No. 34.)
  • Autore
  • Modello inviato da Martin Kent. Utilizzare "Proponi modifica" per inviare ulteriori dati.
