T86A Ch= 79-14
Kriesler Radio Company; Newtown (Sydney)
- Country
- Australia
- Manufacturer / Brand
- Kriesler Radio Company; Newtown (Sydney)
- Year
- 1964
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 216862

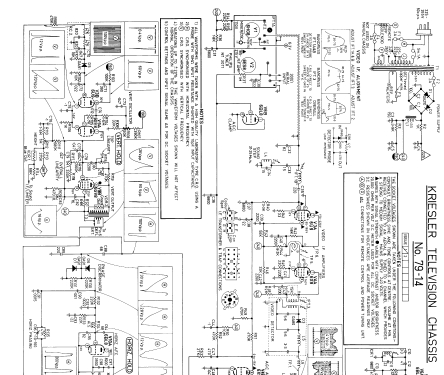

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 14
- Main principle
- Superhet with RF-stage; ZF/IF 36750/31250 kHz; 1 AF stage(s)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 225-245; 245-265 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: T86A Ch= 79-14 - Kriesler Radio Company;
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
- 59 cm B&W television set tunes the 13 standard Australian VHF channels.
- Source of data
- - - Manufacturers Literature
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
