• Country
• United States of America (USA)

• Manufacturer / Brand
• Krohn-Hite Corp.; Cambridge and Brockton, MA

• Year
• 1973

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 299284

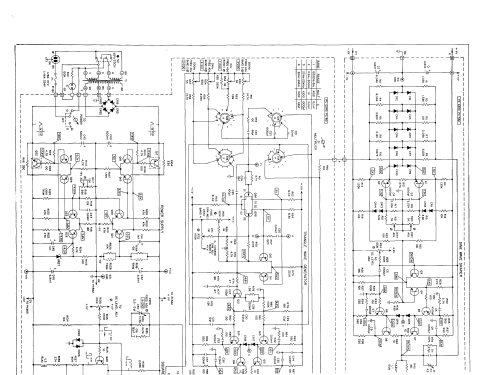

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Power type and voltage
• Alternating Current supply (AC) / 115, 230 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

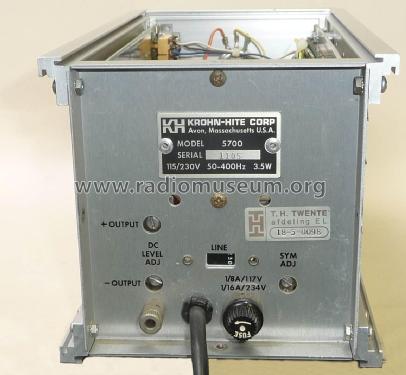

• Model: Function Generator 5700 - Krohn-Hite Corp.; Cambridge

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 140 x 152 x 280 mm / 5.5 x 6 x 11 inch

• Notes

• Function Generator: sine, square or triangle waveforms.
  0.002 Hz to 2 MHz in 4 ranges.



• Net weight (2.2 lb = 1 kg)
• 3.5 kg / 7 lb 11.3 oz (7.709 lb)

• Author
• Model page created by Hugo Sneyers. See "Data change" for further contributors.
