• Country
• Italy

• Manufacturer / Brand
• Krundaal Davoli; Parma

• Year
• 1960 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 246428

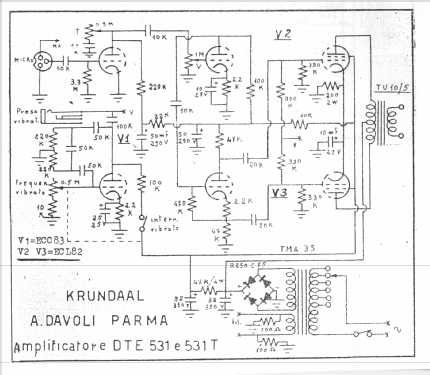

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• ECC83 ECL82 ECL82

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Guitar Amplifier

• Power type and voltage
• Alternating Current supply (AC) / 110/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch

• Power out
• 10 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: DTE 531 T - Krundaal Davoli; Parma

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 370 x 290 x 120 mm / 14.6 x 11.4 x 4.7 inch

• Net weight (2.2 lb = 1 kg)
• 4 kg / 8 lb 13 oz (8.811 lb)

• Author
• Model page created by Roberto Cecchi. See "Data change" for further contributors.
