• Country
• Italy

• Manufacturer / Brand
• Krundaal Davoli; Parma

• Year
• 1970 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 314650

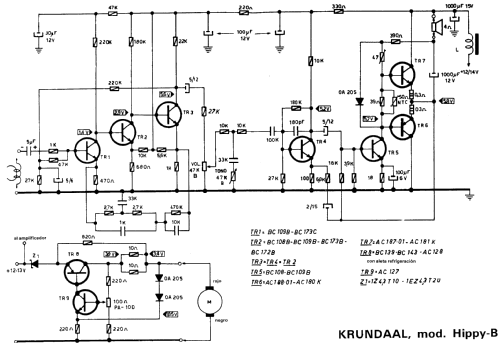

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• BC109B BC108B BC108B BC108B BC108 AC188 AC187 BC139 AC127

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Batteries / addl. power jack / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: Hippy B - Krundaal Davoli; Parma

• Mentioned in
• -- Schematic

• Literature/Schematics (1)
• -- Schematic (“Schemario Radio Autoradio Mangianastri” editore Il Rostro marzo 1970.)

• Author
• Model page created by Toni Gutiérrez García. See "Data change" for further contributors.
