• Country
• Germany

• Manufacturer / Brand
• Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel

• Year
• 1961–1963

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 105471

• • alternative name: Imperial Kuba

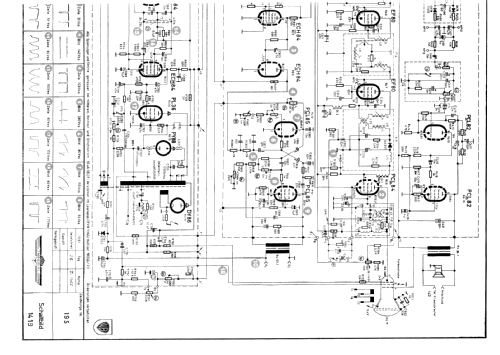

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes
• AW47-91

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• from Radiomuseum.org

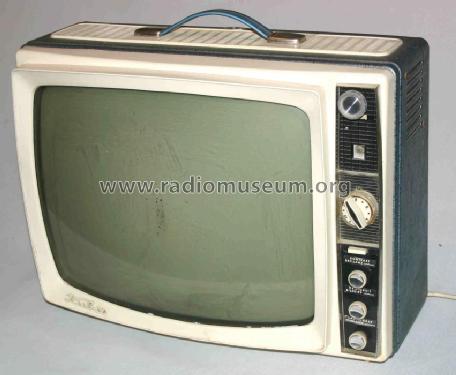

• Model: 1419 - Kuba Kuba-Imperial, G.

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 510 x 405 x 310 mm / 20.1 x 15.9 x 12.2 inch

• Notes
• VHF/UHF. Spezial-Peil-Dipol-Antenne für VHF und UHF.

• Net weight (2.2 lb = 1 kg)
• 16.5 kg / 36 lb 5.5 oz (36.344 lb)

• Price in first year of sale
• 998.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1961/62

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
