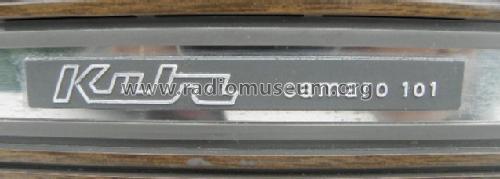

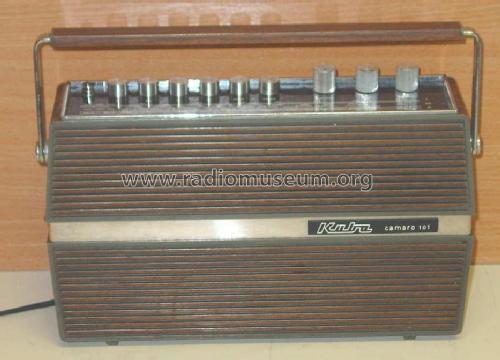

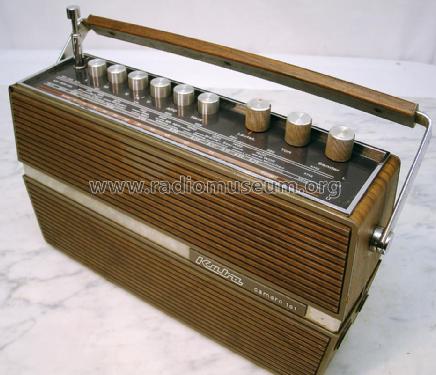

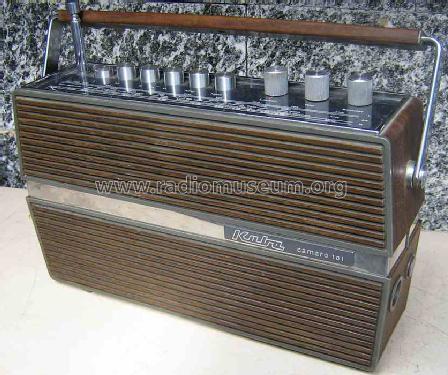

Camaro 101

• Country
• Germany

• Manufacturer / Brand
• Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel

• Year
• 1971/1972

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 28602

• • alternative name: Imperial Kuba

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands

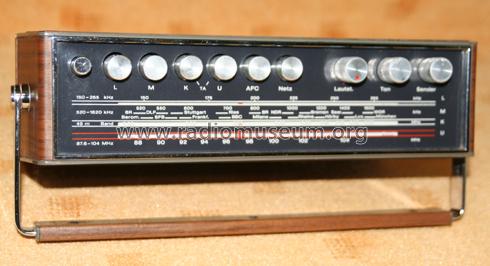

• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220 / 6 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Camaro 101 - Kuba Kuba-Imperial, G.

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 280 x 180 x 80 mm / 11 x 7.1 x 3.1 inch

• Notes
• Paralleltype zum Telefunken Camaro 101NT. Kurzwelle ca. 5,9 - 6,3MHz.

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1971/1972 / Radiokatalog Band 2, Ernst Erb
