- Country
- Germany
- Manufacturer / Brand
- Imperial Rundfunk und Fernseh (Kuba-Imperial, auch General Electric); Osterode/Harz, Hemmingen
- Year
- 1965–1968
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 98125

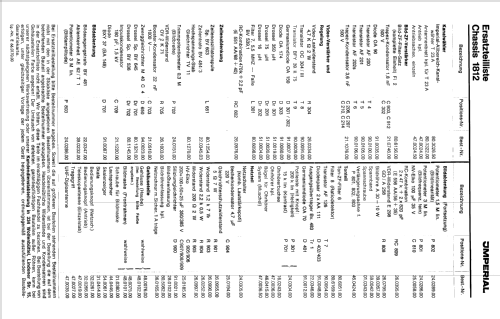

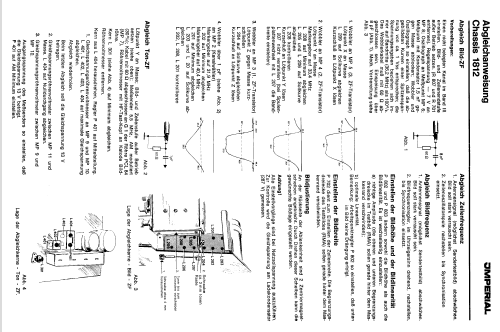

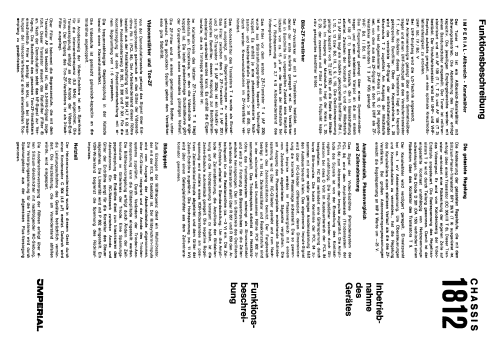

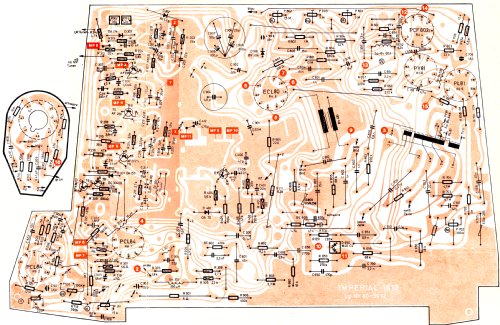

Service-Manual

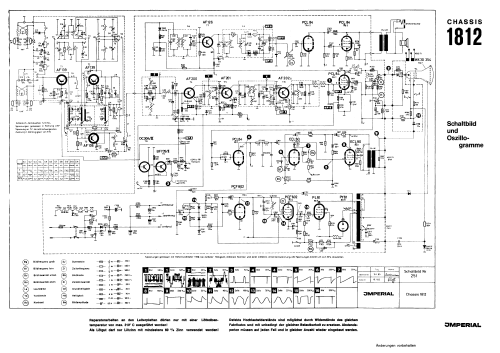

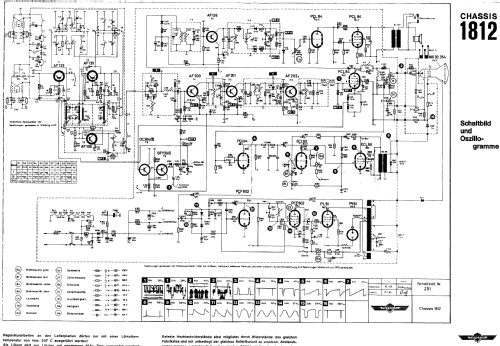

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Number of Transistors
- 9
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 2 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Chico Ch= 1812 - Imperial Rundfunk und Fernseh
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 380 x 265 x 300 mm / 15 x 10.4 x 11.8 inch
- Notes
-

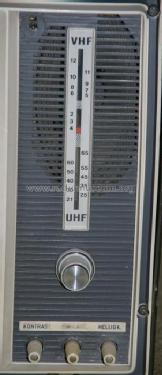

"Durchstimmbarer" Tuner (VHF: K2-K12, UHF: K21-K65); Bereiche werden während Abstimmung über Kurvenscheibe umgeschaltet.
Parallelgerät zu Kuba Chico.
- Net weight (2.2 lb = 1 kg)
- 7.8 kg / 17 lb 2.9 oz (17.181 lb)
- Source of data
- Handbuch VDRG 1965/1966
- Mentioned in
- Handbuch VDRG 1966/1967
- Literature/Schematics (1)
- -- Original-techn. papers.
- Literature/Schematics (2)
- Handbuch RFP 1965/66, 1967/68 (Thiele, Helmstedt)
- Author
- Model page created by Wolfgang Wegner. See "Data change" for further contributors.
