CK219T Ch= C219
Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel
- Country
- Germany
- Manufacturer / Brand
- Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel
- Year
- 1968/1969
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 116409
-
- alternative name: Imperial Kuba
Kuba Prospekt Panorama 69
Q: Imperial, Service-Anleitung Nr. 66-481
Q: Imperial, Service-Anleitung Nr. 66-481

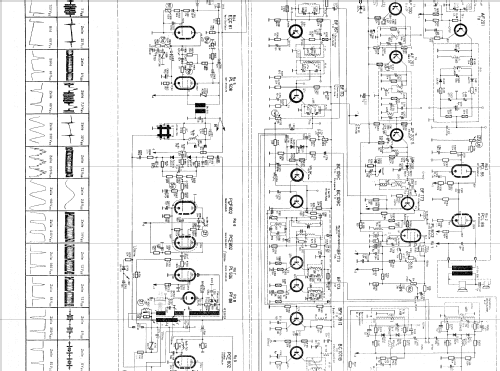

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 13
- Number of Transistors
- 32
- Semiconductors
- AA113 B30C400 BA100 BA102 BA145 BA148 BA173 OA81 OA90 OA91 OA150 OA174 SSi-C0880 TV6,5 V40C2 Z12 ZE1,5 AF106 AF126 AF139 AF200 AF201 AF201 AF202 AF239 BC107 BC107 BC107 BC107 BC107 BC107 BC109 BC109 BC109 BC109 BF167 BF173 BF173 BF173 BF173 BF179 BF179 BF179 BFY39II BFY39II BFY39II BFY39III EL220-7128 EL220-7128
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: CK219T Ch= C219 - Kuba Kuba-Imperial, G.
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 725 x 495 x 490 mm / 28.5 x 19.5 x 19.3 inch
- Notes
-
- 48-cm-Farbfernseher
- VHF/UHF
- Technische Daten wie CU225T
mehrfach vorhandene Dioden nur einmal aufgeführt.
- Net weight (2.2 lb = 1 kg)
- 34 kg / 74 lb 14.2 oz (74.89 lb)
- Source of data
- Handbuch VDRG 1968/1969
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
