Color-Chassis Ch= C1100
Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel
- Country
- Germany
- Manufacturer / Brand
- Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel
- Year
- 1971 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 335950
-
- alternative name: Imperial Kuba
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Number of Transistors
- 48
- Semiconductors
- AF279 AF280 AF239 AF106 BF198 BF199 BF311 BC237 BC238 BC212 BC213 BC183 BC258 BC177 BC107 ULN2111A or. TAA930 MJE340 2N5296 T6N500 TAA550 BB105 BA182 AA133 AA138 BAY86 BB102 BA147 ZF12 V40C2 BZY85 BY112 B40C800 BA173 TV6,5
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Various materials
- from Radiomuseum.org
- Model: Color-Chassis Ch= C1100 - Kuba Kuba-Imperial, G.
- Shape
- Tablemodel, low profile (big size).
- Notes
-
Das Imperial Color-Chassis C1100 ist z.B. in diesem Farbfernseh-Empfänger verbaut:
Tuner-Baustein kann auch mit den Transistoren AF251, AF256 und AF109 bestückt sein.
Jeder Transistor-Typ ist einmal gelistet, Diodentypen sind nicht alle erfasst.
- Literature/Schematics (1)

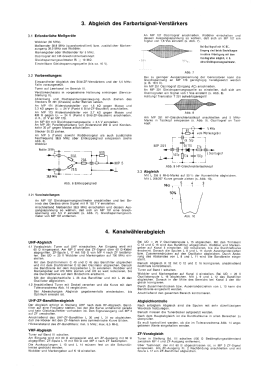

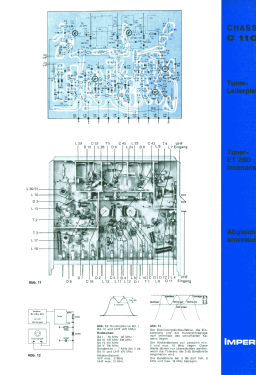

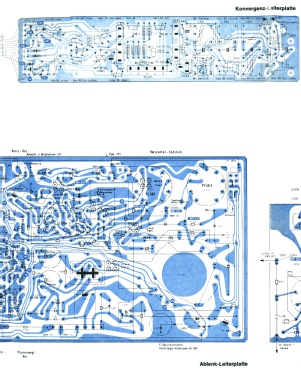

- -- Original-techn. papers. (Service-Anleitung zum Color-Chassis C1100)
- Author
- Model page created by Carsten Meyer. See "Data change" for further contributors.
- Other Models
-
Here you find 739 models, 685 with images and 262 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel
