• Country
• Germany

• Manufacturer / Brand
• Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel

• Year
• 1959/1960

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 101287

• • alternative name: Imperial Kuba

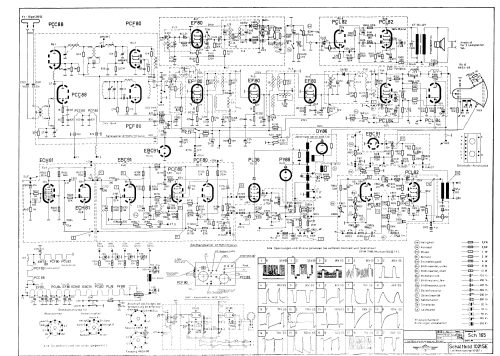

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes
• AW53-80

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: FET1021S - Kuba Kuba-Imperial, G.

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 590 x 490 x 380 mm / 23.2 x 19.3 x 15 inch

• Notes
• VHF; gegen Aufpreis mit UHF-Tuner lieferbar.

• Net weight (2.2 lb = 1 kg)
• 37 kg / 81 lb 8 oz (81.498 lb)

• Price in first year of sale
• 948.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1959/60

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
