• Country
• Germany

• Manufacturer / Brand
• Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel

• Year
• 1968 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 176054

• • alternative name: Imperial Kuba

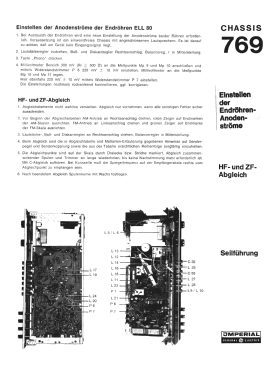

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH81 EAF801 ELL80 ELL80 EMM803

• Number of Transistors
• 10

• Semiconductors
• 2N3662 2N3662 BF194 2N3392 2N3392 2N3392 BC167 BC167 BC167 BC167 AA113 AA113 V15C60 B250C135

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

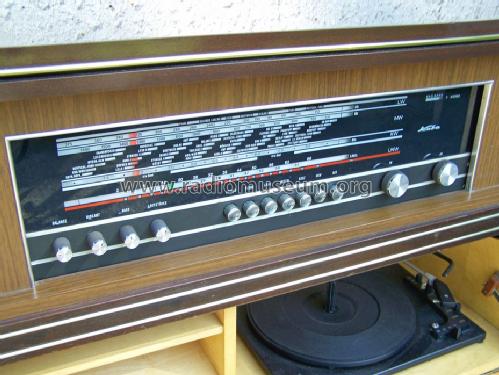

• Model: Imperial 769 Stereo - Kuba Kuba-Imperial, G.

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 820 x 900 x 390 mm / 32.3 x 35.4 x 15.4 inch

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Claude Boulet. See "Data change" for further contributors.

• Other Models

• Here you find 739 models, 685 with images and 260 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel
