• Country
• Germany

• Manufacturer / Brand
• Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel

• Year
• 1964/1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 25813

• • alternative name: Imperial Kuba

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EAF801 ECC83 EM84 ELL80

• Number of Transistors
• 1

• Semiconductors
• AF137 AA113 AA113

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

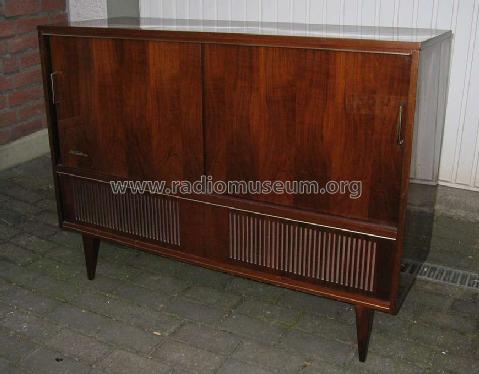

• Model: Kopenhagen Ch= 664 [poliert] - Kuba Kuba-Imperial, G.

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1110 x 860 x 390 mm / 43.7 x 33.9 x 15.4 inch

• Notes

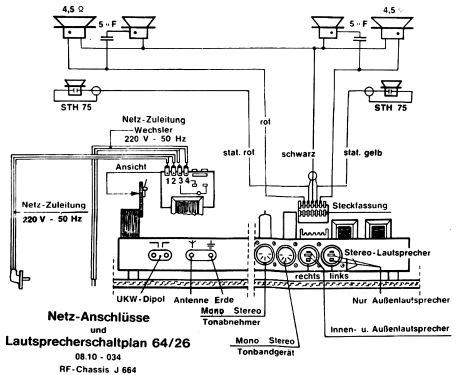

• Rundfunk-Chassis = 664;

  Phono-Chassis: verschiedene Fabrikate.

• Price in first year of sale
• 1,038.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1964/1965 / Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Schematic
