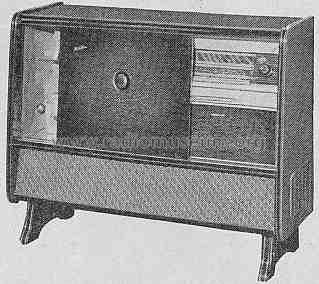

Lido 58 Ch= Concertino 8
Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel
- Country
- Germany
- Manufacturer / Brand
- Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel
- Year
- 1957/1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 21315
-
- alternative name: Imperial Kuba
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 8 AM circuit(s) 12 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
- Loudspeaker
- 5 Loudspeakers
- Power out
- 5.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Lido 58 Ch= Concertino 8 - Kuba Kuba-Imperial, G.
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 1100 x 870 x 420 mm / 43.3 x 34.3 x 16.5 inch
- Notes
- Rundfunk-Chassis = Telefunken Concertino 8;
Phono-Chassis = Telefunken.
- Price in first year of sale
- 928.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1957/58 / Radiokatalog Band 2, Ernst Erb
