- Country
- Germany
- Manufacturer / Brand
- Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel
- Year
- 1959–1962
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 15617
-
- alternative name: Imperial Kuba
- Number of Tubes
- 8
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 5 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org

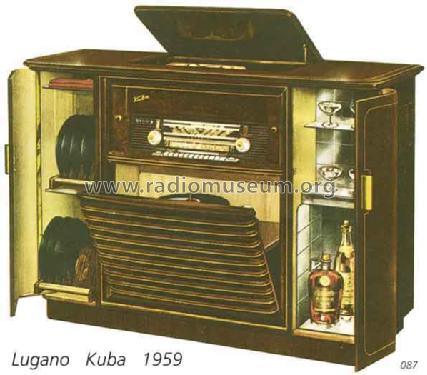

- Model: Lugano - Kuba Kuba-Imperial, G.
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 1350 x 930 x 490 mm / 53.1 x 36.6 x 19.3 inch
- Notes
- Ch=Imp.609 In Katalog 1961/62 #448 - zumindest dann mit Plattenspieler.
- Net weight (2.2 lb = 1 kg)
- 86 kg / 189 lb 6.8 oz (189.427 lb)
- Price in first year of sale
- 1,375.00 DM
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- HdB d.Rdf-& Ferns-GrH 1961/62 / Radiokatalog Band 2, Ernst Erb
- Mentioned in
- Funk-Technik (FT) (4909)
- Picture reference
- Das Modell ist im «Radiokatalog» (Erb) abgebildet.
